How to Use OAuth 2.0 Authentication in Oracle Integration Cloud (OIC)
Introduction
In modern integrations, security is critical. Earlier, many integrations used Basic Authentication with usernames and passwords. Today, most APIs use OAuth 2.0 because it is more secure and flexible.
This blog explains how to configure OAuth 2.0 authentication in Oracle Integration Cloud using the Client Credentials flow.
What is OAuth 2.0 in Simple Terms?
OAuth 2.0 allows applications to securely access APIs using access tokens instead of sharing usernames and passwords.
Benefits
- Better security
- Token-based authentication
- No need to expose passwords
- Widely supported by REST APIs
OAuth 2.0 Flow Used in OIC
or server-to-server integrations, OIC commonly uses:
Client Credentials Grant Type
In this flow:
- OIC sends Client ID and Client Secret
- Authorization Server generates an Access Token
- OIC uses the token to call APIs
Step 1: Create OAuth Connection in OIC
Go to:
Connections → Create
Choose:
- REST Adapter
- Configure Connection Security as OAuth 2.0
Step 2: Enter OAuth Details
Provide the following values:
Field
Example
Grant Type
Client Credentials
Access Token URL
https://api.example.com/oauth/token
Client ID
oic_client
Client Secret
********
Scope
read write
Example Token Request
POST /oauth/token HTTP/1.1
Host: api.example.com
Content-Type: application/x-www-form-urlencoded
grant_type=client_credentials&
client_id=oic_client&
client_secret=password123
Example API Calling Using Access Token
GET /employees HTTP/1.1
Authorization: Bearer eyJhbGciOi….
OIC automatically handles token generation and refresh.

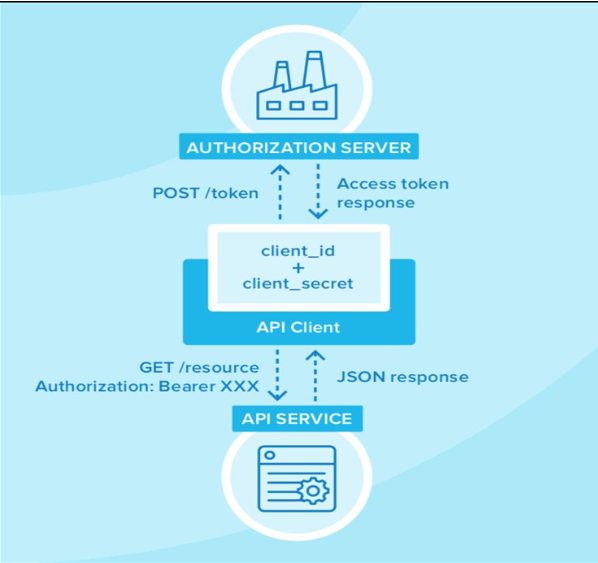

Architecture Flow
OIC Connection Configuration Example
Testing the Connection
After configuration:
- Click Test
- OIC requests the access token
- If successful, the connection status becomes Configured
Common Errors
Error | Reason |
Invalid Client | Wrong Client ID or Secret |
Unauthorized | Incorrect scope |
Token Expired | Access token timeout |
401 Error | Missing Bearer token |
Conclusion
OAuth 2.0 is the recommended authentication method for secure API integrations in OIC. Using Client Credentials flow makes integrations secure, scalable, and easy to manage without exposing user passwords.
For modern REST integrations in OIC, OAuth 2.0 should always be preferred over Basic Authentication.
